Fuel effcient Tier 4
Complying to current and future emission regulations
Lightweight due to aluminum frame
eControl+ user interface with integrated hose meter counter
270˚ pivoting and rotating hosereel

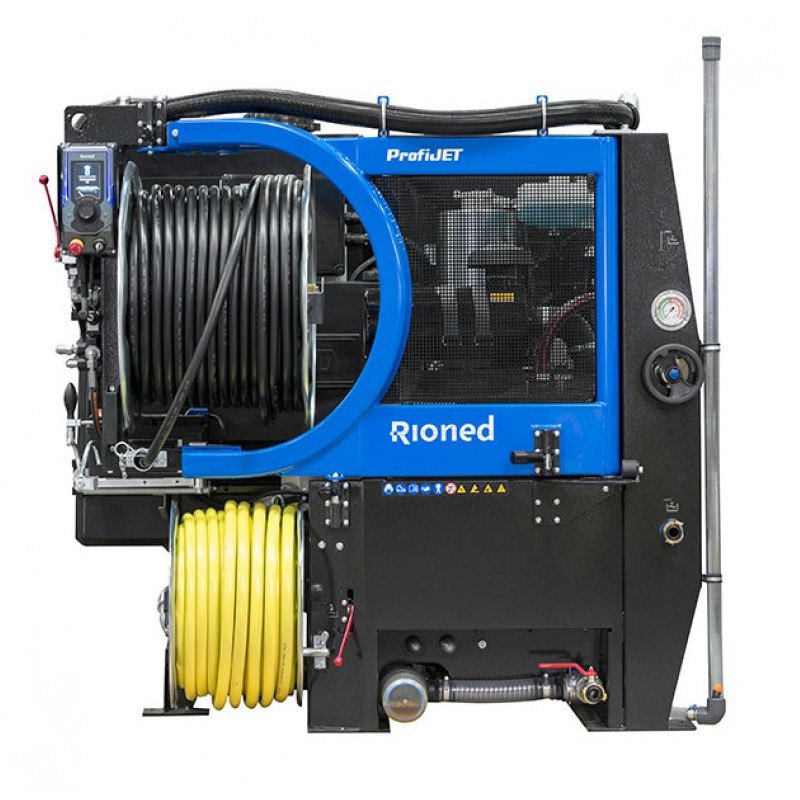

The ProfiJet T4 is equipped with a fuel efficient Kubota V2403-CR-Turbo diesel engine with built in Diesel Particle Filter. The pump capacity is 280 bar and 70 litres per minute, allowing you to take on previously irreparable jobs. Two separate water tanks with a 300 or 400 litre capacity are inter connected to optimize road stability and driving comfort.
Fuel effcient Tier 4
Complying to current and future emission regulations
Lightweight due to aluminum frame
eControl+ user interface with integrated hose meter counter
270˚ pivoting and rotating hosereel
Operating range |
max 600 mm |
---|---|
Motor |
Kubota V2403-CR-Tier 4 / stage, B 48 KW (65 PK) |
Dimensions (LxWxH) |
1736 x 1383 x 1186 mm |
Fuel tank |
30 litres |
Pressure regulator |
Type Speck wih automatic bypass |
Weight |
As from 800 kgs |
HD-reel |
Hydraulic drive 90° + 180° pivoting |
HD-hose |
80 metres NW13 (1/2") |
Application range |
Max 600 mm |
Color |
Blue hose reel, black frame |
Attachments |
Spraygun and lance |
Fillreel |
35 metres NW19 |
Water tank |
600, 2x 300 litres |
