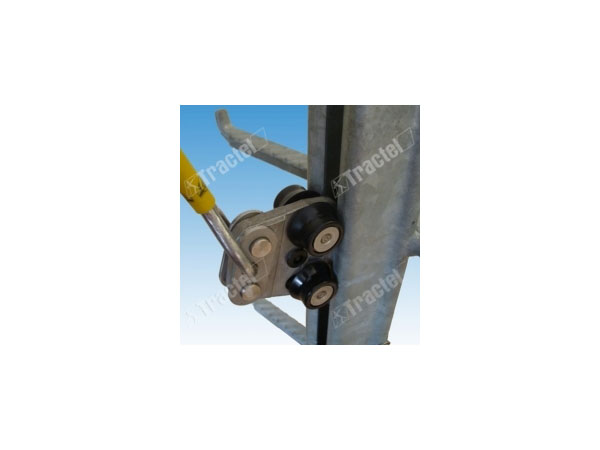

Introduced in 1965, the FABA A11 System is the precursor to the vertical access safety devices. The safety rail and carriages designs are symmetrical. The fall arrest device can be inserted in either direction in the safety rail.
– Material : Hot-dipped galvanised steel or stainless steel (1.4571)
– Version : Ladder with central upright or just a rail.
– Spacing in between stops : 140 mm
– Spacing in between rungs : 280 mm
– Rungs : Inclined forward and welded on the back of the rail.
– Adjustment lengths : 1960, 1680, 1400 and 1120 mm
Tractel – FABA Safety Ladders – FABA System A11 – Permanent vertical access, galvanised steel or stainless steel
Introduced in 1965, the FABA A11 System is the precursor to the vertical access safety devices. The safety rail and carriages designs are symmetrical. The fall arrest device can be inserted in either direction in the safety rail.
Description
Additional information
Rail profile dimension |
68 x 56 x 2.8mm |
---|---|
Ladder width |
408 mm |
Primary Length |
2800 mm |
Max distance b/w fixings |
1960 mm |
