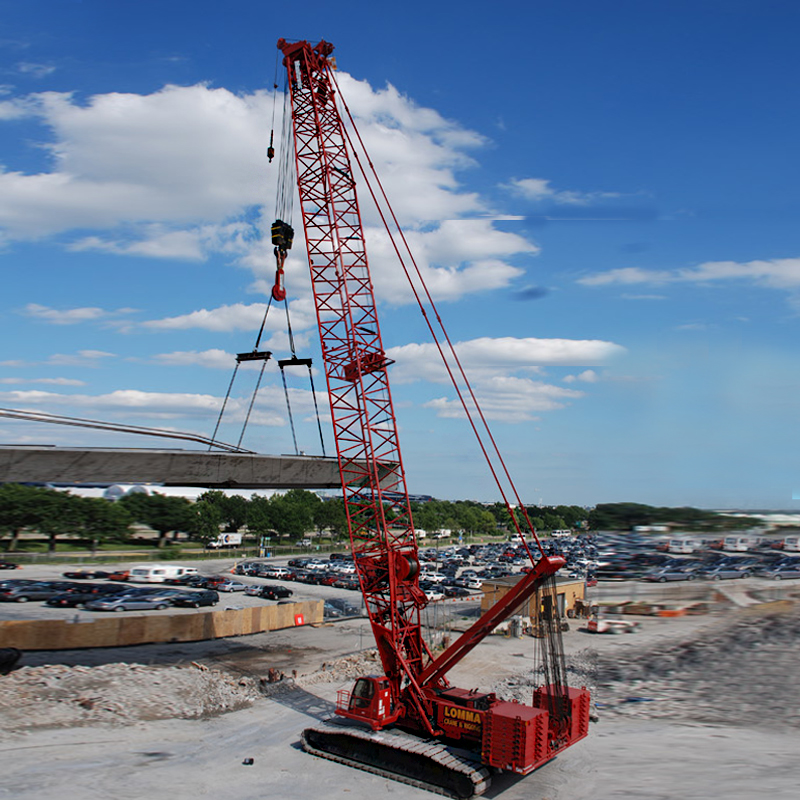

Manitowoc – Lattice Boom Crawler – 14000

  • Complete crane, maximum boom, fixed jib, and counterweights ships on only 12 trucks
  • Heaviest module weight of 39,689 kg (87,500 lb) maximum module width of 3 m (10 ft)
  • Fast, efficient self-assembly and disassembly
  • 253 kW (340 Hp) engine
  • EPIC with CAN-bus controls
  • Manitowoc Crane Care comprehensive support

The Model 14000 features the patented CAN-Bus and EPIC control system configured with six independent closed-loop hydraulic circuits. The fully hydraulic crane offers a maximum main boom of 89 m (282 ft), a luffing jib up to 110 m (364 ft) and lift capacity of 200 t (220 USt). The Model 14000 crane uses the FACT connection system for easy set-up.

Additional Information

Max Capacity

200 t
(220 USt)

Main Boom Length

89 m
(292 ft)

Fixed Jib on Main Boom

24.4 m
(80 ft)

Luffing Jib on Main Boom

51.8 m
(170 ft)
